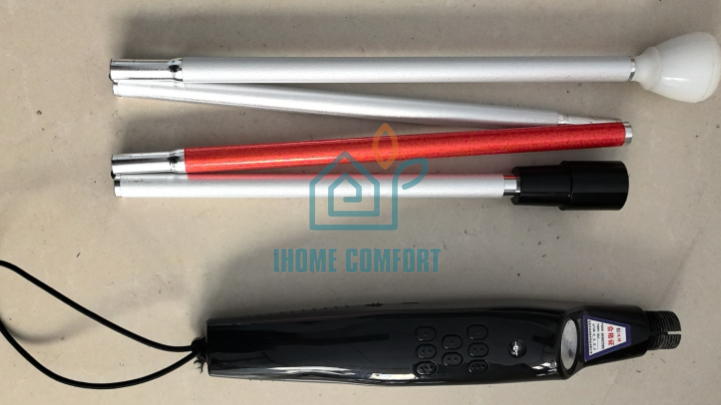

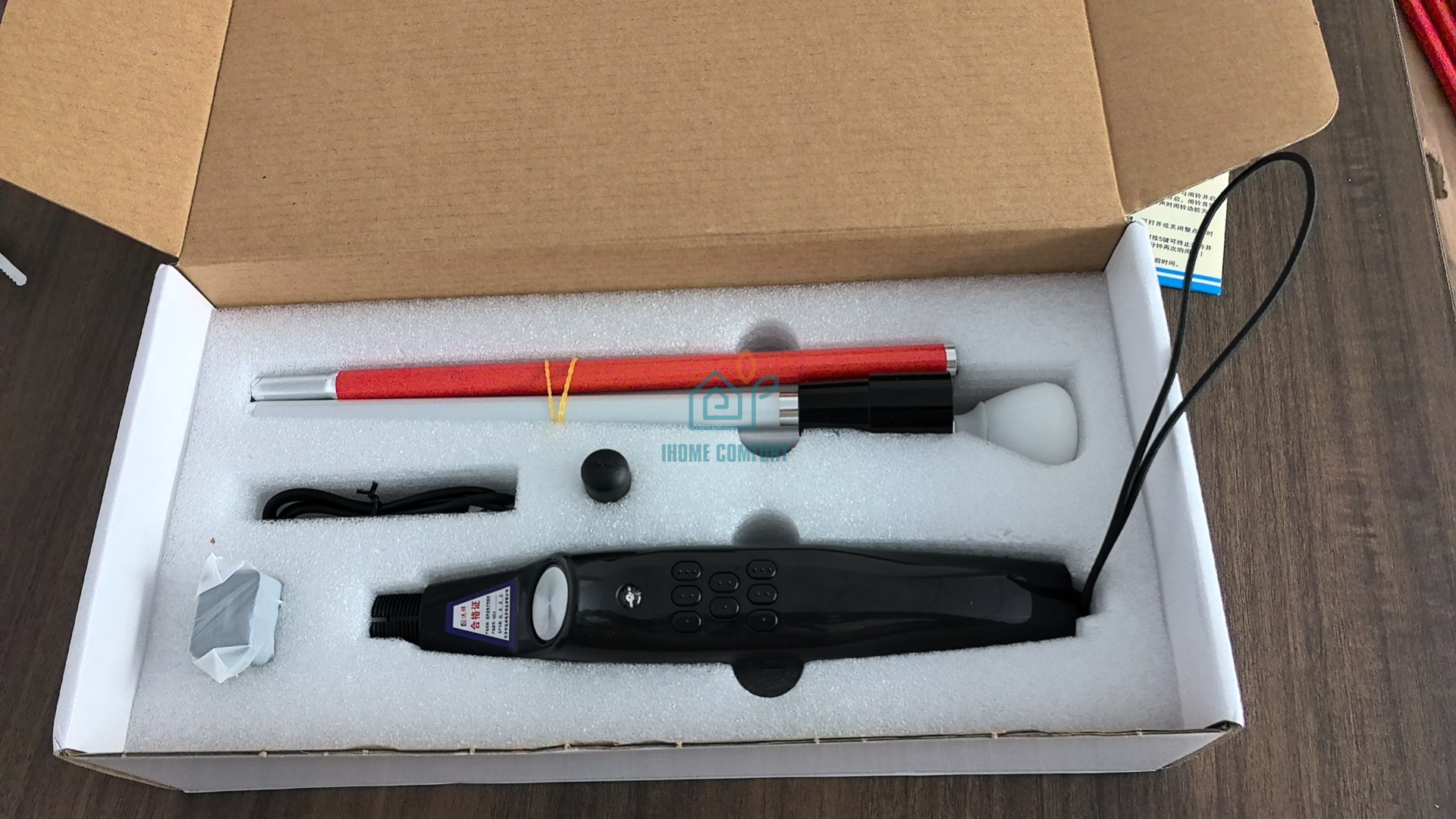

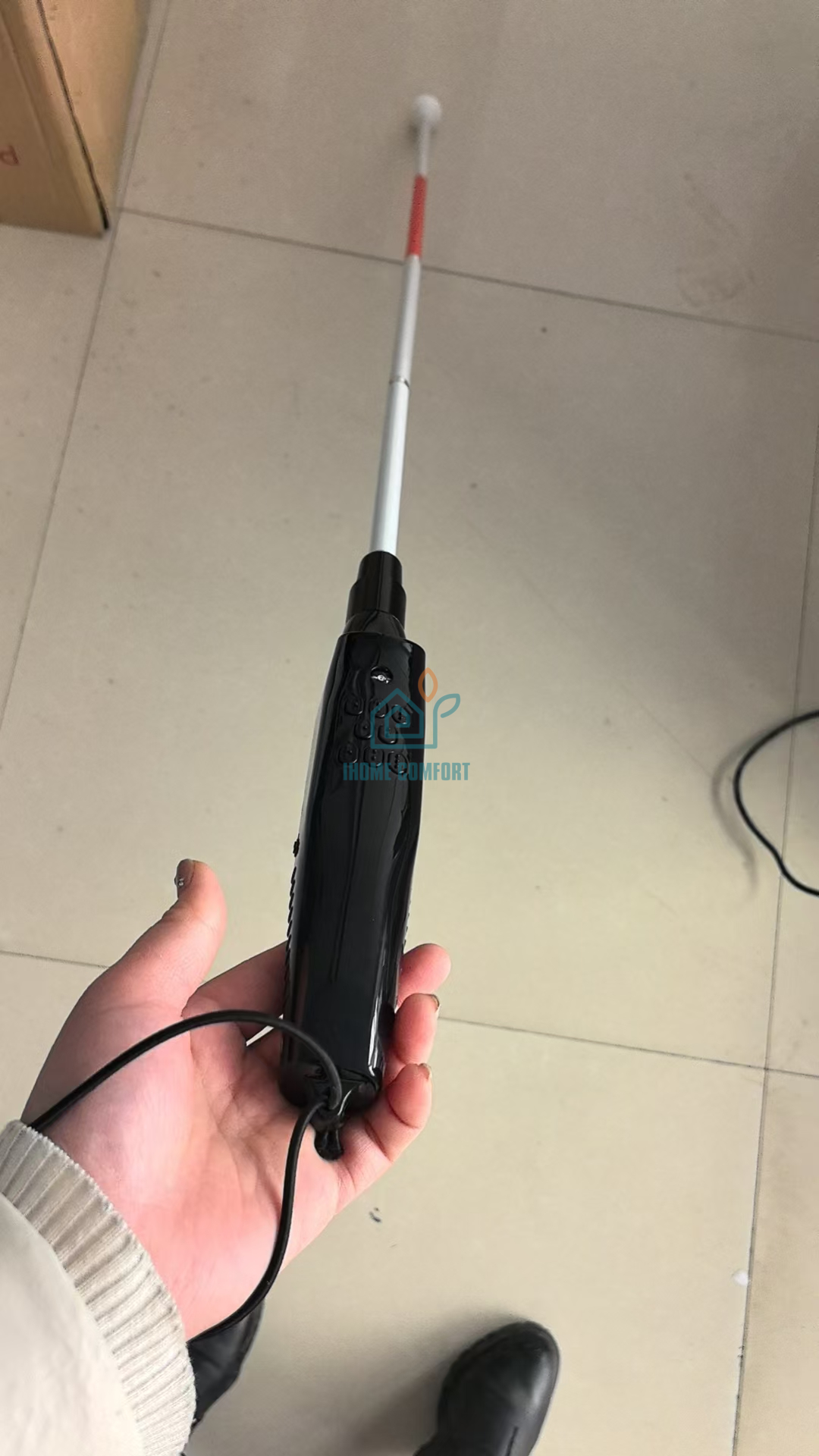

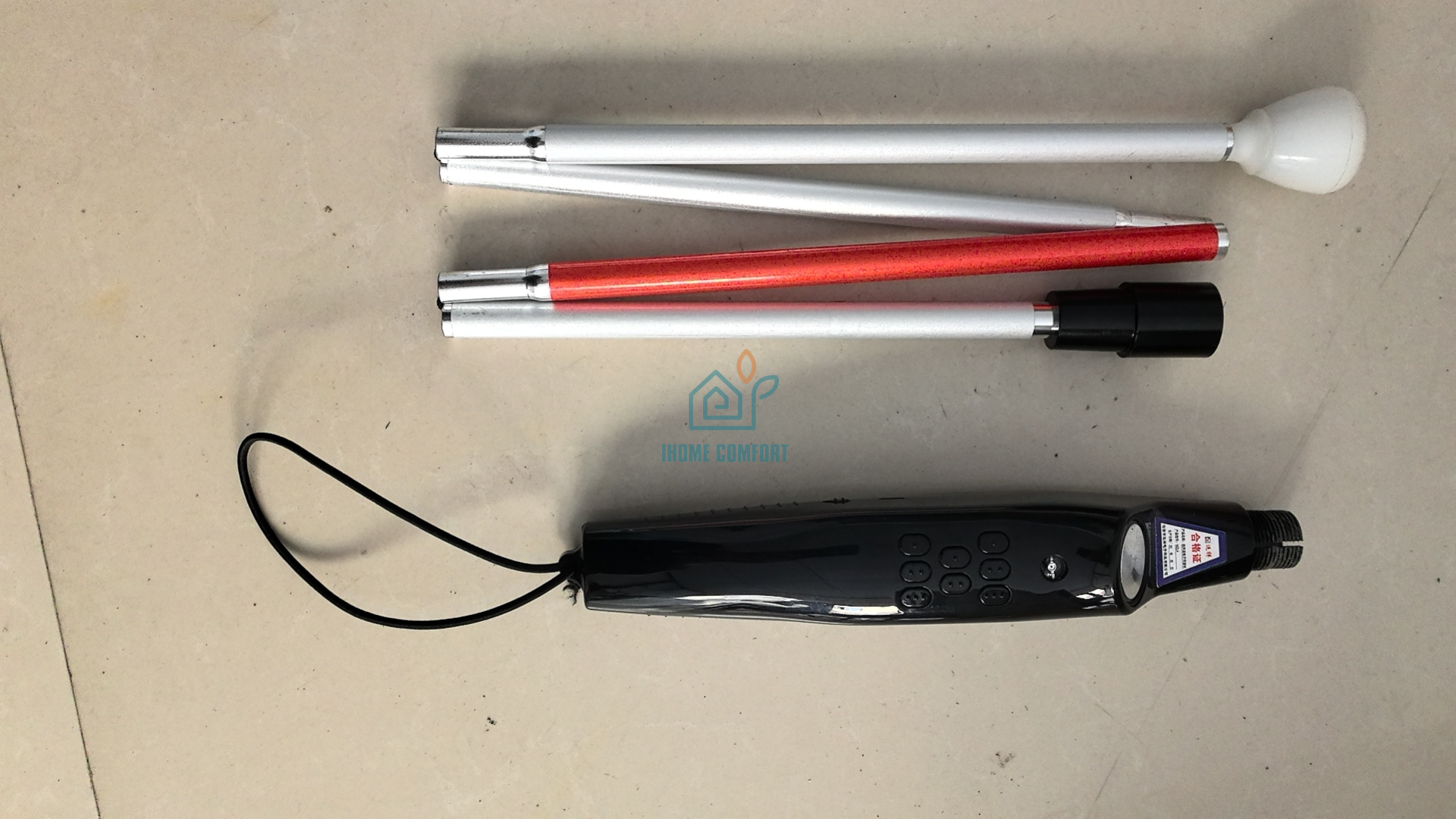

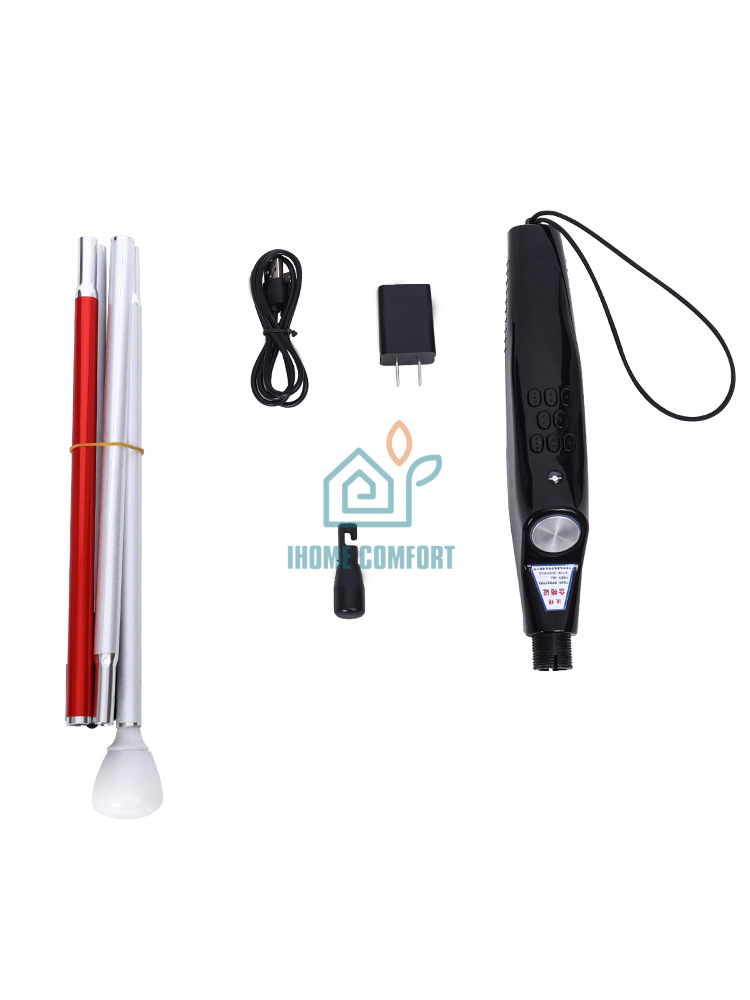

White Cane (Smart)

SPECIFICATION

Smart Cane device is an electronic travel aid for visually

impaired person in mobility and navigation. Smart Cane

device can produce ultrasonic waves to detect presence of obstacles.Technical Specification:

Physical specifications

Dimensions (H x W x D): (238-242) x (50-55) x (30-35) mm

Grip Height: 185-195 mm

Maximum Grip Diameter: 31.5-33.5 mm

Sensor-angle Settings: 3 Settings (0 , 17.8 and 35.6 . Device Weight with Battery: 135-145 grams

White Cane Diameter Range: 11- 14 mm

Smart cane Material: Polycarbonate

Detection Characteristics:

Resolution: 3 cm to 3m

Sensor Type: 38-42 KHz Ultrasonic

Angular Coverage (Maximum): 42 -48

Indore Range: 0.03 to 1.8m

Outdoor Range: 0.03 to 3.0m

Vibration Characteristics:

Average Vibration Identity: 0.6-0.9 m/sec square

Average Vibration Identity: 0.5-0.7 m/sec square

Average Vibration Identity: 2.2-2.4 m/sec square

Audible alerts: ≥ 65 dB (A)

Battery Specifications

Type: Rechargeable Li-polymer

Rating: 3.7 V;420 mA

Size (LxBxW): (40-42) x (6-7) x (18-20) mm

Weight: 7-9 grams
